一、需求分析

  1. 买家可以对商品提交购买问题咨询,买家提交的商品购买咨询不单单商家可以进行回复,也应该可以将问题推送给购买过此商品的买家来进行回复。

  2. 买家提出的咨询和对其他买家咨询的回复,都应该推送消息给相应的会员用户,做到及时提醒。

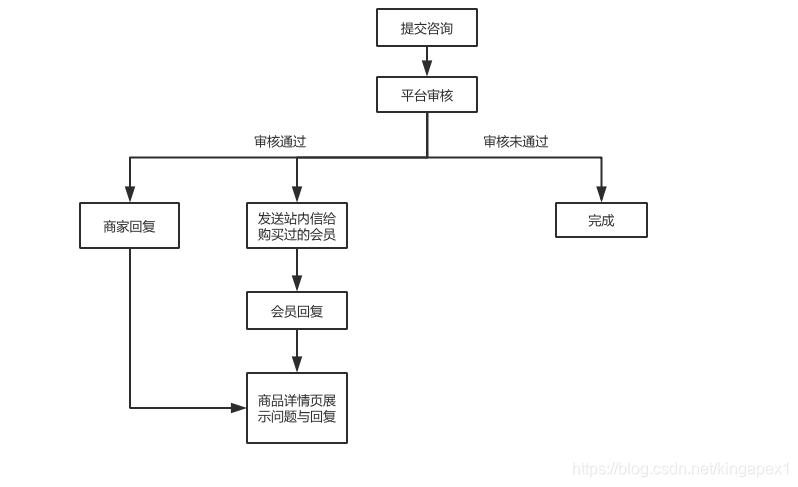

二、流程图

java b2b2c商城

三、数据结构

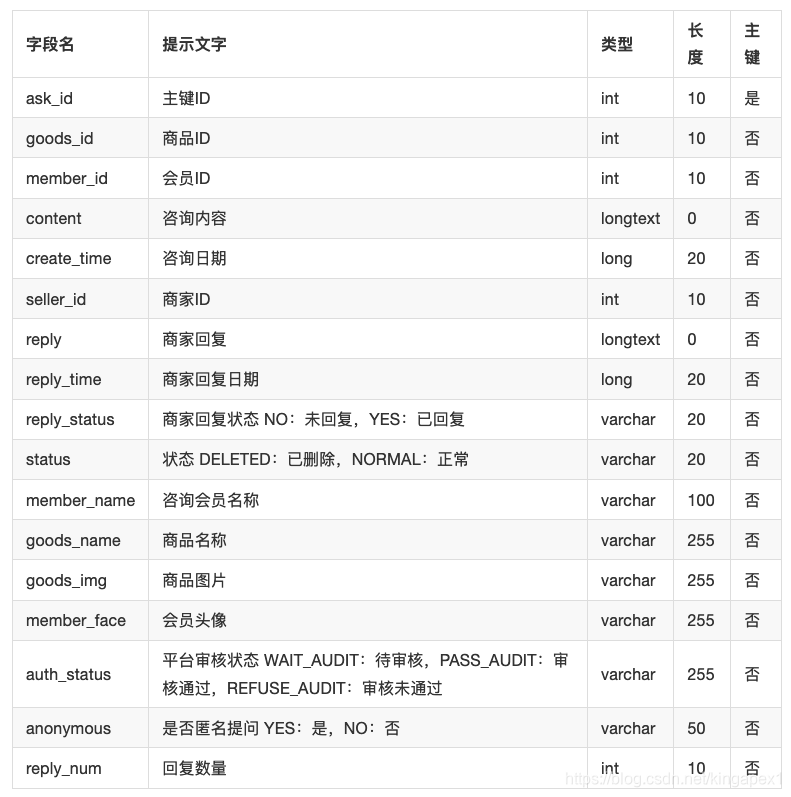

  1. 会员问题咨询表

java b2b2c商城

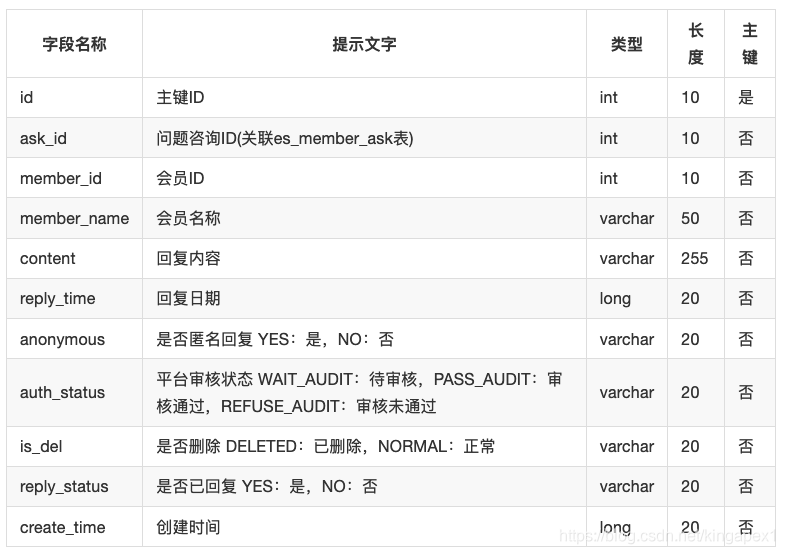

  1. 会员问题咨询回复表

java b2b2c商城

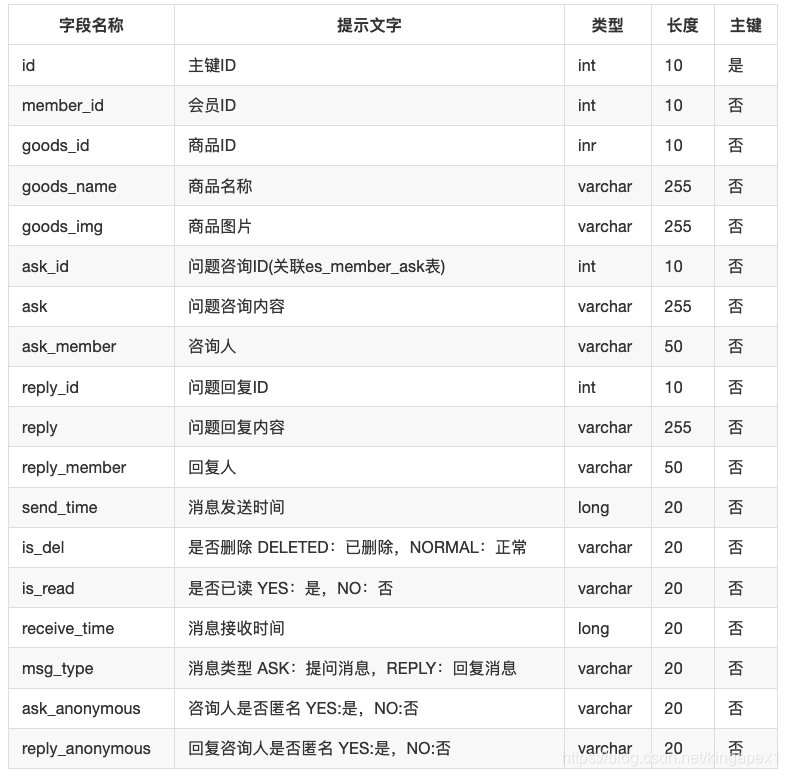

  1. 会员咨询与回复站内消息表

java b2b2c商城

四、类图展示

1、实体类展示

java b2b2c商城

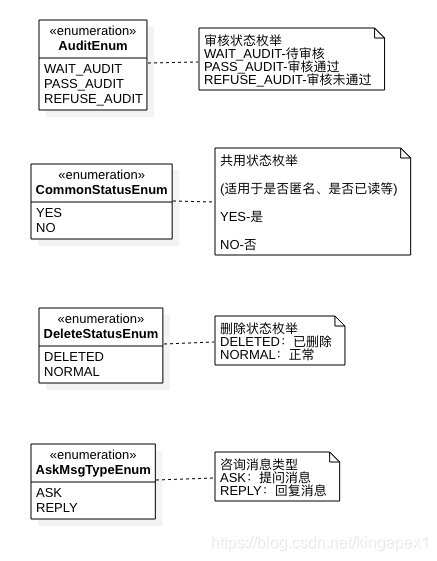

2、枚举类展示

java b2b2c商城

五、领域模型

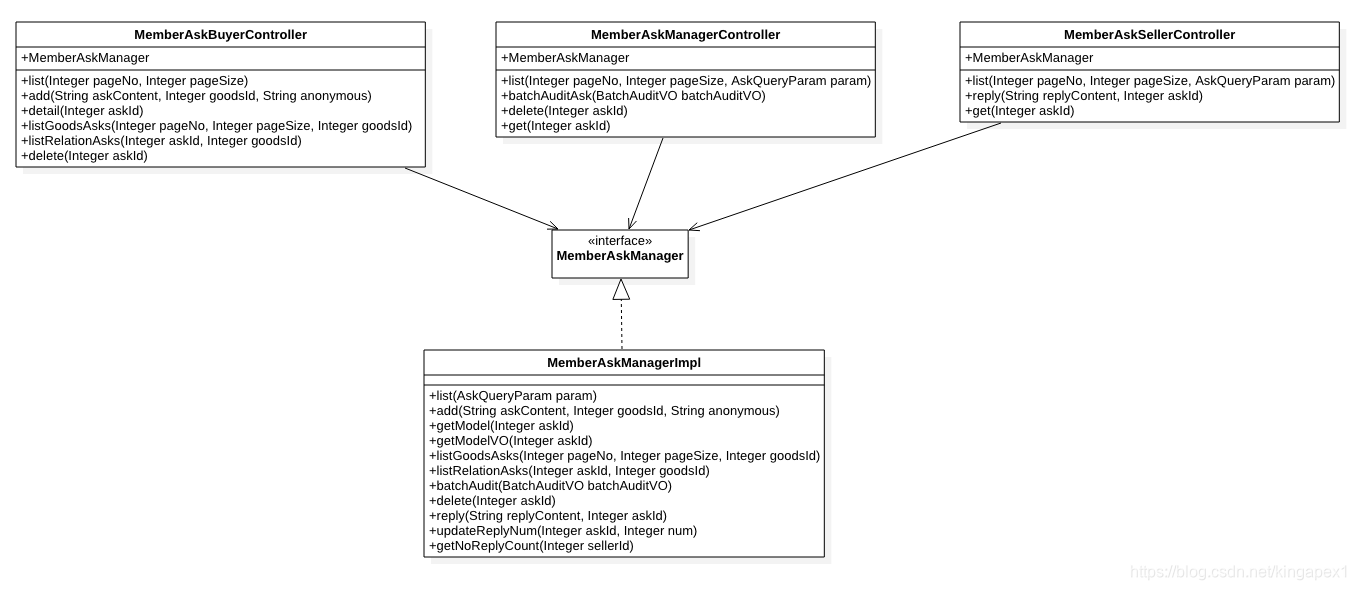

1、会员问题咨询

java b2b2c商城

2、会员回复问题咨询

java b2b2c商城

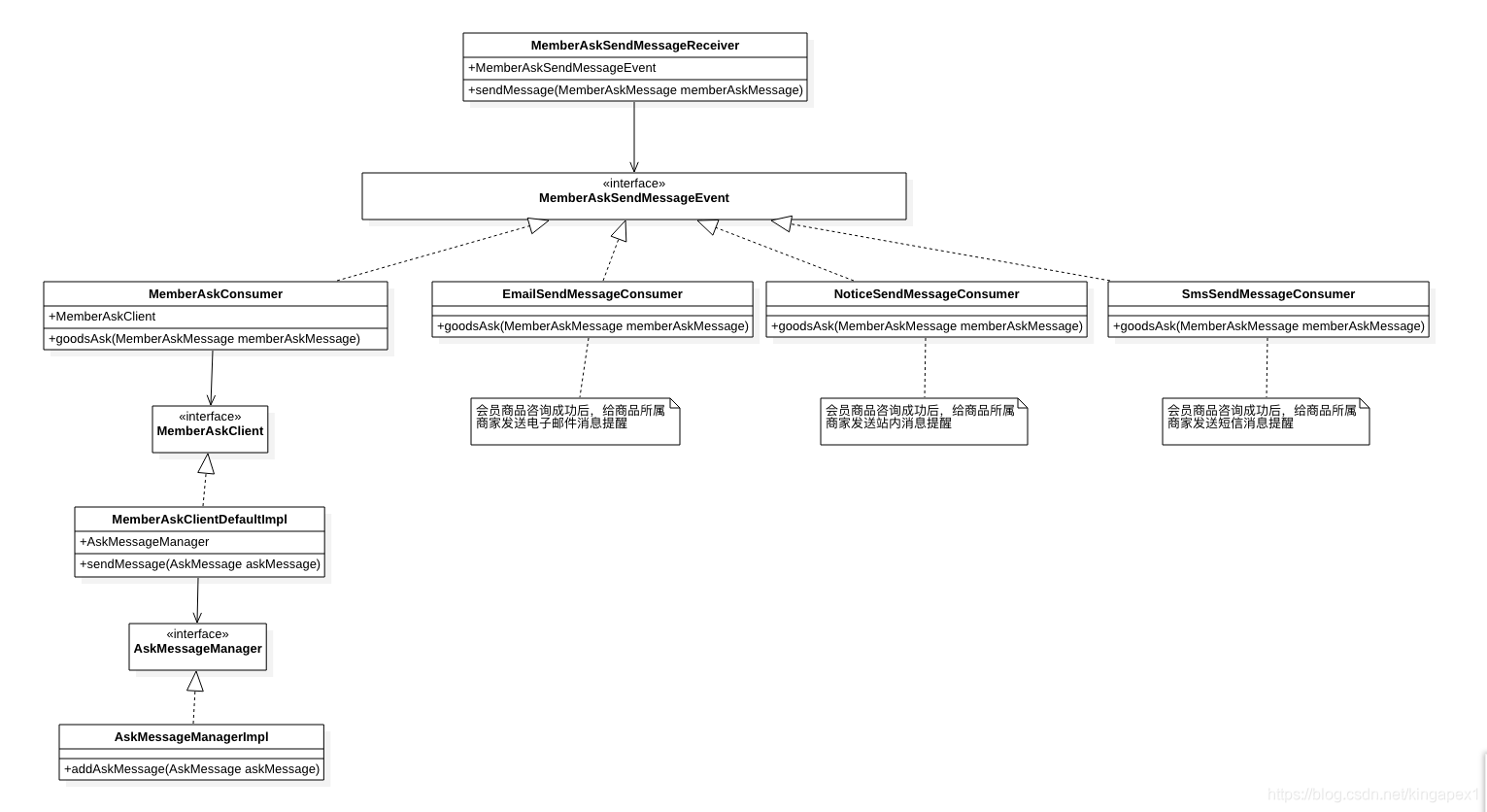

3、会员商品咨询审核通过发送消息

java b2b2c商城

六、源码展示

这里以会员购买咨询为例:

会员问题咨询实体--Memb

/**
 * 会员问题咨询实体
 *
 * @author dmy
 * @version v2.0
 * @since v7.1.5
 * 2019-09-16
 */
@Table(name = "es_member_ask")
@ApiModel
@JsonNaming(value = PropertyNamingStrategy.SnakeCaseStrategy.class)
public class MemberAsk implements Serializable {

    private static final long serialVersionUID = 1642694855238993L;

    /**
     * 主键
     */
    @Id(name = "ask_id")
    @ApiModelProperty(hidden = true)
    private Integer askId;
    /**
     * 商品id
     */
    @Column(name = "goods_id")
    @ApiModelProperty(name = "goods_id", value = "商品id", required = false)
    private Integer goodsId;
    /**
     * 会员id
     */
    @Column(name = "member_id")
    @ApiModelProperty(name = "member_id", value = "会员id", required = false)
    private Integer memberId;
    /**
     * 卖家id
     */
    @Column(name = "seller_id")
    @ApiModelProperty(name = "seller_id", value = "卖家id", required = false)
    private Integer sellerId;
    /**
     * 咨询内容
     */
    @Column(name = "content")
    @ApiModelProperty(name = "content", value = "咨询内容", required = false)
    private String content;
    /**
     * 咨询时间
     */
    @Column(name = "create_time")
    @ApiModelProperty(name = "create_time", value = "咨询时间", required = false)
    private Long createTime;
    /**
     * 商家回复内容
     */
    @Column(name = "reply")
    @ApiModelProperty(name = "reply", value = "商家回复内容", required = false)
    private String reply;
    /**
     * 商家回复时间
     */
    @Column(name = "reply_time")
    @ApiModelProperty(name = "reply_time", value = "商家回复时间", required = false)
    private Long replyTime;
    /**
     * 商家是否回复 YES:是,NO:否
     */
    @Column(name = "reply_status")
    @ApiModelProperty(name = "reply_status", value = "商家是否回复 YES:是,NO:否", required = false)
    private String replyStatus;
    /**
     * 删除状态 DELETED:已删除 NORMAL:正常
     */
    @Column(name = "status")
    @ApiModelProperty(name = "status", value = "删除状态 DELETED:已删除 NORMAL:正常", required = false)
    private String status;
    /**
     * 咨询人名称
     */
    @Column(name = "member_name")
    @ApiModelProperty(name = "member_name", value = "咨询人名称", required = false)
    private String memberName;
    /**
     * 会员头像
     */
    @Column(name = "member_face")
    @ApiModelProperty(name = "member_face", value = "会员头像", required = false)
    private String memberFace;
    /**
     * 商品名称
     */
    @Column(name = "goods_name")
    @ApiModelProperty(name = "goods_name", value = "商品名称", required = false)
    private String goodsName;
    /**
     * 商品图片
     */
    @Column(name = "goods_img")
    @ApiModelProperty(name = "goods_img", value = "商品图片", required = false)
    private String goodsImg;
    /**
     * 审核状态 WAIT_AUDIT:待审核,PASS_AUDIT:审核通过,REFUSE_AUDIT:审核未通过
     */
    @Column(name = "auth_status")
    @ApiModelProperty(name = "auth_status", value = "审核状态 WAIT_AUDIT:待审核,PASS_AUDIT:审核通过,REFUSE_AUDIT:审核未通过", required = false)
    private String authStatus;
    /**
     * 是否匿名 YES:是,NO:否
     */
    @Column(name = "anonymous")
    @ApiModelProperty(name = "anonymous", value = "是否匿名 YES:是,NO:否", required = false)
    private String anonymous;
    /**
     * 会员问题咨询回复数量
     * 包含商家回复
     */
    @Column(name = "reply_num")
    @ApiModelProperty(name = "reply_num", value = "会员问题咨询回复数量", required = false)
    private Integer replyNum;

    @PrimaryKeyField
    public Integer getAskId() {
        return askId;
    }

    public void setAskId(Integer askId) {
        this.askId = askId;
    }

    public Integer getGoodsId() {
        return goodsId;
    }

    public void setGoodsId(Integer goodsId) {
        this.goodsId = goodsId;
    }

    public Integer getMemberId() {
        return memberId;
    }

    public void setMemberId(Integer memberId) {
        this.memberId = memberId;
    }

    public Integer getSellerId() {
        return sellerId;
    }

    public void setSellerId(Integer sellerId) {
        this.sellerId = sellerId;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    public Long getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Long createTime) {
        this.createTime = createTime;
    }

    public String getReply() {
        return reply;
    }

    public void setReply(String reply) {
        this.reply = reply;
    }

    public Long getReplyTime() {
        return replyTime;
    }

    public void setReplyTime(Long replyTime) {
        this.replyTime = replyTime;
    }

    public String getReplyStatus() {
        return replyStatus;
    }

    public void setReplyStatus(String replyStatus) {
        this.replyStatus = replyStatus;
    }

    public String getStatus() {
        return status;
    }

    public void setStatus(String status) {
        this.status = status;
    }

    public String getMemberName() {
        return memberName;
    }

    public void setMemberName(String memberName) {
        this.memberName = memberName;
    }

    public String getMemberFace() {
        return memberFace;
    }

    public void setMemberFace(String memberFace) {
        this.memberFace = memberFace;
    }

    public String getGoodsName() {
        return goodsName;
    }

    public void setGoodsName(String goodsName) {
        this.goodsName = goodsName;
    }

    public String getGoodsImg() {
        return goodsImg;
    }

    public void setGoodsImg(String goodsImg) {
        this.goodsImg = goodsImg;
    }

    public String getAuthStatus() {
        return authStatus;
    }

    public void setAuthStatus(String authStatus) {
        this.authStatus = authStatus;
    }

    public String getAnonymous() {
        return anonymous;
    }

    public void setAnonymous(String anonymous) {
        this.anonymous = anonymous;
    }

    public Integer getReplyNum() {
        return replyNum;
    }

    public void setReplyNum(Integer replyNum) {
        this.replyNum = replyNum;
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) {
            return true;
        }
        if (o == null || getClass() != o.getClass()) {
            return false;
        }
        MemberAsk memberAsk = (MemberAsk) o;
        return Objects.equals(askId, memberAsk.askId) &&
                Objects.equals(goodsId, memberAsk.goodsId) &&
                Objects.equals(memberId, memberAsk.memberId) &&
                Objects.equals(sellerId, memberAsk.sellerId) &&
                Objects.equals(content, memberAsk.content) &&
                Objects.equals(createTime, memberAsk.createTime) &&
                Objects.equals(reply, memberAsk.reply) &&
                Objects.equals(replyTime, memberAsk.replyTime) &&
                Objects.equals(replyStatus, memberAsk.replyStatus) &&
                Objects.equals(status, memberAsk.status) &&
                Objects.equals(memberName, memberAsk.memberName) &&
                Objects.equals(memberFace, memberAsk.memberFace) &&
                Objects.equals(goodsName, memberAsk.goodsName) &&
                Objects.equals(goodsImg, memberAsk.goodsImg) &&
                Objects.equals(authStatus, memberAsk.authStatus) &&
                Objects.equals(anonymous, memberAsk.anonymous) &&
                Objects.equals(replyNum, memberAsk.replyNum);
    }

    @Override
    public int hashCode() {
        return Objects.hash(askId, goodsId, memberId, sellerId, content, createTime, reply, replyTime, replyStatus, status, memberName, memberFace, goodsName, goodsImg, authStatus, anonymous, replyNum);
    }

    @Override
    public String toString() {
        return "MemberAsk{" +
                "askId=" + askId +
                ", goodsId=" + goodsId +
                ", memberId=" + memberId +
                ", sellerId=" + sellerId +
                ", content='" + content + '\'' +
                ", createTime=" + createTime +
                ", reply='" + reply + '\'' +
                ", replyTime=" + replyTime +
                ", replyStatus='" + replyStatus + '\'' +
                ", status='" + status + '\'' +
                ", memberName='" + memberName + '\'' +
                ", memberFace='" + memberFace + '\'' +
                ", goodsName='" + goodsName + '\'' +
                ", goodsImg='" + goodsImg + '\'' +
                ", authStatus='" + authStatus + '\'' +
                ", anonymous='" + anonymous + '\'' +
                ", replyNum=" + replyNum +
                '}';
    }
}

新增会员购买咨询API--MemberAskBuyerController

/**
 * 会员商品咨询API
 *
 * @author dmy
 * @version v2.0
 * @since v7.1.5
 * 2019-09-17
 */
@RestController
@RequestMapping("/members/asks")
@Api(description = "会员商品咨询API")
@Validated
public class MemberAskBuyerController {

    @Autowired
    private MemberAskManager memberAskManager;

    @ApiOperation(value = "添加咨询", response = MemberAsk.class)
    @ApiImplicitParams({
            @ApiImplicitParam(name = "ask_content", value = "咨询内容", required = true, dataType = "string", paramType = "query"),
            @ApiImplicitParam(name = "goods_id", value = "咨询商品id", required = true, dataType = "int", paramType = "query"),
            @ApiImplicitParam(name = "anonymous", value = "是否匿名 YES:是,NO:否", required = true, dataType = "string", paramType = "query", allowableValues = "YES,NO")
    })
    @PostMapping
    public MemberAsk add(@NotEmpty(message = "请输入咨询内容")@ApiIgnore String askContent,
                         @NotNull(message = "咨询商品不能为空") @ApiIgnore Integer goodsId,
                         @NotNull(message = "请选择是否匿名提问") @ApiIgnore String anonymous) {

        //咨询内容敏感词过滤
        askContent = SensitiveFilter.filter(askContent, CharacterConstant.WILDCARD_STAR);

        MemberAsk memberAsk = this.memberAskManager.add(askContent, goodsId, anonymous);

        return memberAsk;
    }
}

业务层

新增会员咨询业务接口--MemberAskManager

/**
 * 咨询业务层
 * @author dmy
 * @version v2.0
 * @since v7.1.5
 * 2019-09-17
 */
public interface MemberAskManager  {

   /**
    * 添加咨询
    * @param askContent 咨询
    * @param goodsId 商品id
    * @param anonymous 是否匿名 YES:是,NO:否
    * @return MemberAsk 咨询
    */
   MemberAsk add(String askContent, Integer goodsId, String anonymous);
}

业务接口实现类--MemberAskManagerImpl

/**
 * 咨询业务类
 *
 * @author dmy
 * @version v2.0
 * @since v7.1.5
 * 2019-09-17
 */
@Service
public class MemberAskManagerImpl implements MemberAskManager {

    @Autowired
    @Qualifier("memberDaoSupport")
    private DaoSupport daoSupport;
    @Autowired
    private GoodsClient goodsClient;
    @Autowired
    private MemberManager memberManager;
    @Autowired
    private SettingClient settingClient;
    @Autowired
    private AmqpTemplate amqpTemplate;

    @Override
    @Transactional(value = "memberTransactionManager", propagation = Propagation.REQUIRED, rollbackFor = Exception.class)
    public MemberAsk add(String askContent, Integer goodsId, String anonymous) {
        if (askContent.length() < 3 || askContent.length() > 120) {
            throw new ServiceException(MemberErrorCode.E202.code(), "咨询内容应在3到120个字符之间");
        }

        //获取咨询的商品信息
        CacheGoods goods = goodsClient.getFromCache(goodsId);

        //获取当前登录的会员信息
        Buyer buyer = UserContext.getBuyer();

        if (buyer == null) {
            throw new ServiceException(MemberErrorCode.E110.code(), "当前会员已经退出登录");
        }

        //在数据库中取出最新的会员信息
        Member member = memberManager.getModel(buyer.getUid());

        MemberAsk memberAsk = new MemberAsk();
        memberAsk.setContent(askContent);
        memberAsk.setMemberId(member.getMemberId());
        memberAsk.setGoodsId(goodsId);
        memberAsk.setGoodsName(goods.getGoodsName());
        memberAsk.setGoodsImg(goods.getThumbnail());
        memberAsk.setCreateTime(DateUtil.getDateline());
        //咨询状态默认为正常状态
        memberAsk.setStatus(DeleteStatusEnum.NORMAL.value());
        memberAsk.setSellerId(goods.getSellerId());
        //商家回复状态默认为未回复
        memberAsk.setReplyStatus(CommonStatusEnum.NO.value());

        if (!CommonStatusEnum.YES.value().equals(anonymous) && !CommonStatusEnum.NO.value().equals(anonymous)) {
            throw new ServiceException(MemberErrorCode.E107.code(), "是否匿名参数值不正确");
        }
        memberAsk.setAnonymous(anonymous);
        memberAsk.setMemberName(CommonStatusEnum.YES.value().equals(anonymous) ? "匿名" : member.getUname());
        memberAsk.setMemberFace(member.getFace());

        //获取商品咨询设置
        String json = this.settingClient.get(SettingGroup.GOODS);
        GoodsSettingVO goodsSettingVO = JsonUtil.jsonToObject(json,GoodsSettingVO.class);
        memberAsk.setAuthStatus(goodsSettingVO.getAskAuth().intValue() == 0 ? AuditEnum.PASS_AUDIT.name() : AuditEnum.WAIT_AUDIT.name());

        this.daoSupport.insert(memberAsk);
        memberAsk.setAskId(this.daoSupport.getLastId(""));

        //如果平台没有开启会员咨询审核,那么就直接发送消息
        if (goodsSettingVO.getAskAuth().intValue() == 0) {
            List<MemberAsk> list = new ArrayList<>();
            list.add(memberAsk);
            this.sendMessage(list);
        }

        return memberAsk;
    }

    /**
     * 发送rabbitmq消息
     * @param memberAskList
     */
    private void sendMessage(List<MemberAsk> memberAskList) {
        MemberAskMessage memberAskMessage = new MemberAskMessage();
        memberAskMessage.setMemberAsks(memberAskList);
        memberAskMessage.setSendTime(DateUtil.getDateline());
        this.amqpTemplate.convertAndSend(AmqpExchange.MEMBER_GOODS_ASK, AmqpExchange.MEMBER_GOODS_ASK + "_ROUTING", memberAskMessage);
    }
}

处理rabbitmq消息的消费者--MemberAskConsumer

/**
 * 会员商品咨询消费者
 * 会员提出咨询后给购买过此商品的会员发送消息
 * @author dmy
 * @version v1.0
 * @since v7.1.5
 * 2019-09-16
 */
@Service
public class MemberAskConsumer implements MemberAskSendMessageEvent {

    @Autowired
    private MemberAskClient memberAskClient;

    @Autowired
    private OrderQueryManager orderQueryManager;

    @Override
    public void goodsAsk(MemberAskMessage memberAskMessage) {
        List<MemberAsk> memberAskList = memberAskMessage.getMemberAsks();

        if (memberAskList != null && memberAskList.size() != 0) {
            for (MemberAsk memberAsk : memberAskList) {
                if (memberAsk == null) {
                    break;
                }

                //获取3个月之内购买过相关商品的订单数据,获取的订单数据只限已完成和已收货并且未删除的订单
                List<OrderDO> orderDOList = orderQueryManager.listOrderByGoods(memberAsk.getGoodsId(), memberAsk.getMemberId(), 3);

                if (orderDOList != null && orderDOList.size() != 0) {
                    AskMessageDO askMessageDO = new AskMessageDO();
                    askMessageDO.setAsk(memberAsk.getContent());
                    askMessageDO.setAskId(memberAsk.getAskId());
                    askMessageDO.setAskMember(memberAsk.getMemberName());
                    askMessageDO.setAskAnonymous(memberAsk.getAnonymous());
                    askMessageDO.setGoodsId(memberAsk.getGoodsId());
                    askMessageDO.setGoodsName(memberAsk.getGoodsName());
                    askMessageDO.setGoodsImg(memberAsk.getGoodsImg());
                    askMessageDO.setIsDel(DeleteStatusEnum.NORMAL.value());
                    askMessageDO.setIsRead(CommonStatusEnum.NO.value());
                    askMessageDO.setSendTime(memberAskMessage.getSendTime());
                    askMessageDO.setReceiveTime(DateUtil.getDateline());
                    askMessageDO.setMsgType(AskMsgTypeEnum.ASK.value());

                    //循环订单获取会员信息,然后给会员发送消息
                    for (OrderDO orderDO : orderDOList) {
                        askMessageDO.setMemberId(orderDO.getMemberId());
                        this.memberAskClient.sendMessage(askMessageDO);
                    }
                }
            }
        }
    }
}

 以上为本次分享内容,相关商城架构源码分享,请持续关注我们!!!

易族智汇(javashop)原创文章

点赞
收藏
评论区
推荐文章
blmius blmius
3年前
MySQL:[Err] 1292 - Incorrect datetime value: ‘0000-00-00 00:00:00‘ for column ‘CREATE_TIME‘ at row 1
文章目录问题用navicat导入数据时,报错:原因这是因为当前的MySQL不支持datetime为0的情况。解决修改sql\mode:sql\mode:SQLMode定义了MySQL应支持的SQL语法、数据校验等,这样可以更容易地在不同的环境中使用MySQL。全局s
皕杰报表之UUID
​在我们用皕杰报表工具设计填报报表时,如何在新增行里自动增加id呢?能新增整数排序id吗?目前可以在新增行里自动增加id,但只能用uuid函数增加UUID编码,不能新增整数排序id。uuid函数说明:获取一个UUID,可以在填报表中用来创建数据ID语法:uuid()或uuid(sep)参数说明:sep布尔值,生成的uuid中是否包含分隔符'',缺省为
待兔 待兔
4个月前
手写Java HashMap源码
HashMap的使用教程HashMap的使用教程HashMap的使用教程HashMap的使用教程HashMap的使用教程22
Jacquelyn38 Jacquelyn38
3年前
2020年前端实用代码段,为你的工作保驾护航
有空的时候,自己总结了几个代码段,在开发中也经常使用,谢谢。1、使用解构获取json数据let jsonData  id: 1,status: "OK",data: 'a', 'b';let  id, status, data: number   jsonData;console.log(id, status, number )
Wesley13 Wesley13
3年前
Java日期时间API系列31
  时间戳是指格林威治时间1970年01月01日00时00分00秒起至现在的总毫秒数,是所有时间的基础,其他时间可以通过时间戳转换得到。Java中本来已经有相关获取时间戳的方法,Java8后增加新的类Instant等专用于处理时间戳问题。 1获取时间戳的方法和性能对比1.1获取时间戳方法Java8以前
Wesley13 Wesley13
3年前
mysql设置时区
mysql设置时区mysql\_query("SETtime\_zone'8:00'")ordie('时区设置失败,请联系管理员!');中国在东8区所以加8方法二:selectcount(user\_id)asdevice,CONVERT\_TZ(FROM\_UNIXTIME(reg\_time),'08:00','0
Wesley13 Wesley13
3年前
00:Java简单了解
浅谈Java之概述Java是SUN(StanfordUniversityNetwork),斯坦福大学网络公司)1995年推出的一门高级编程语言。Java是一种面向Internet的编程语言。随着Java技术在web方面的不断成熟,已经成为Web应用程序的首选开发语言。Java是简单易学,完全面向对象,安全可靠,与平台无关的编程语言。
Wesley13 Wesley13
3年前
MySQL部分从库上面因为大量的临时表tmp_table造成慢查询
背景描述Time:20190124T00:08:14.70572408:00User@Host:@Id:Schema:sentrymetaLast_errno:0Killed:0Query_time:0.315758Lock_
淘宝商品评论接口,天猫商品评论接口,淘宝卖家评论接口,买家评论接口,行业评论接口代码展示
淘宝商品评论接口,天猫商品评论接口,淘宝卖家评论接口,天猫卖家评论接口,淘宝买家评论接口,天猫买家评论接口,天猫商品评论接口,淘宝评论API接口,天猫评论API接口,淘宝买家秀接口,淘宝API接口,行业评论接口
Python进阶者 Python进阶者
10个月前
Excel中这日期老是出来00:00:00,怎么用Pandas把这个去除
大家好,我是皮皮。一、前言前几天在Python白银交流群【上海新年人】问了一个Pandas数据筛选的问题。问题如下:这日期老是出来00:00:00,怎么把这个去除。二、实现过程后来【论草莓如何成为冻干莓】给了一个思路和代码如下:pd.toexcel之前把这
